Humminbird | SKU:
137-4110101
Sold out

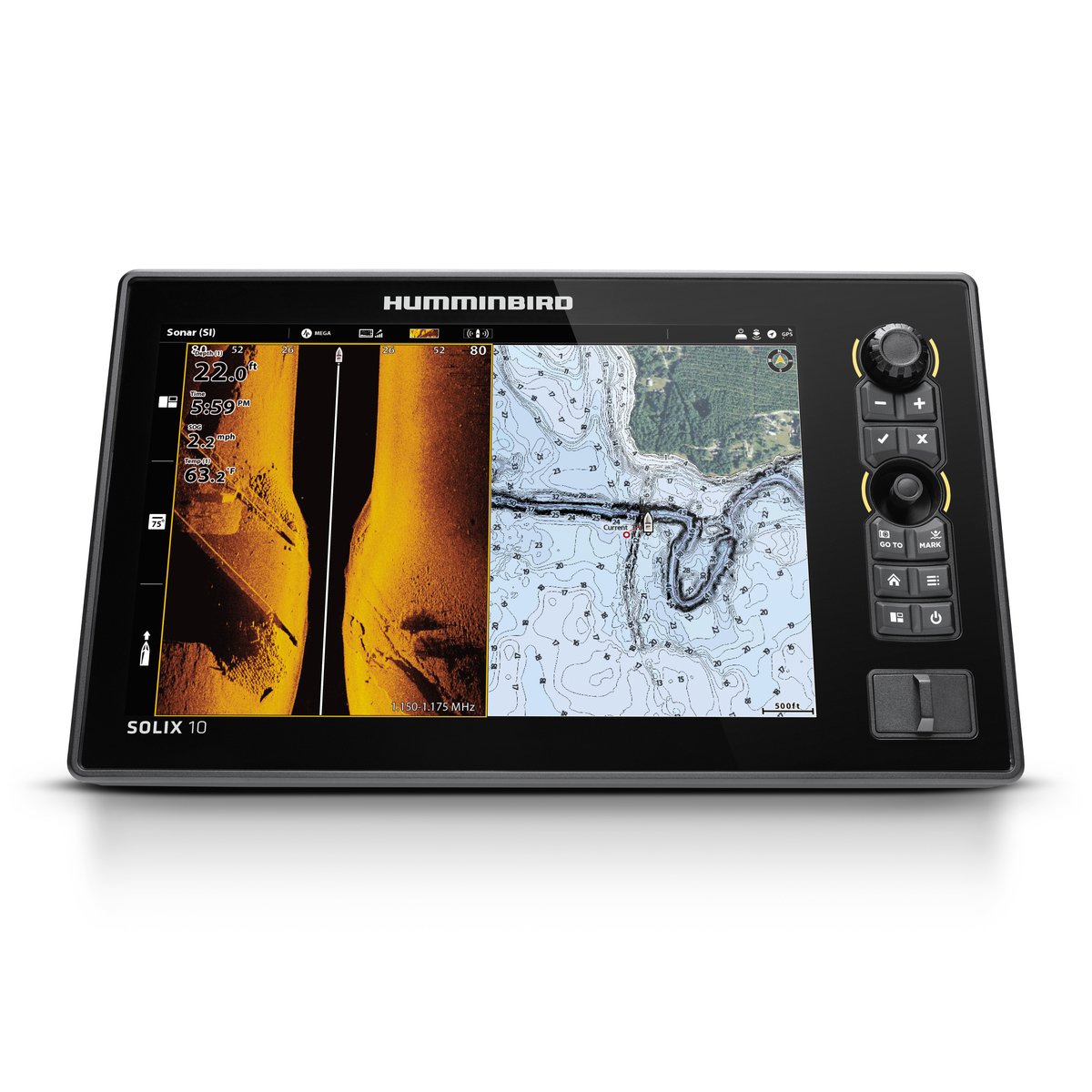

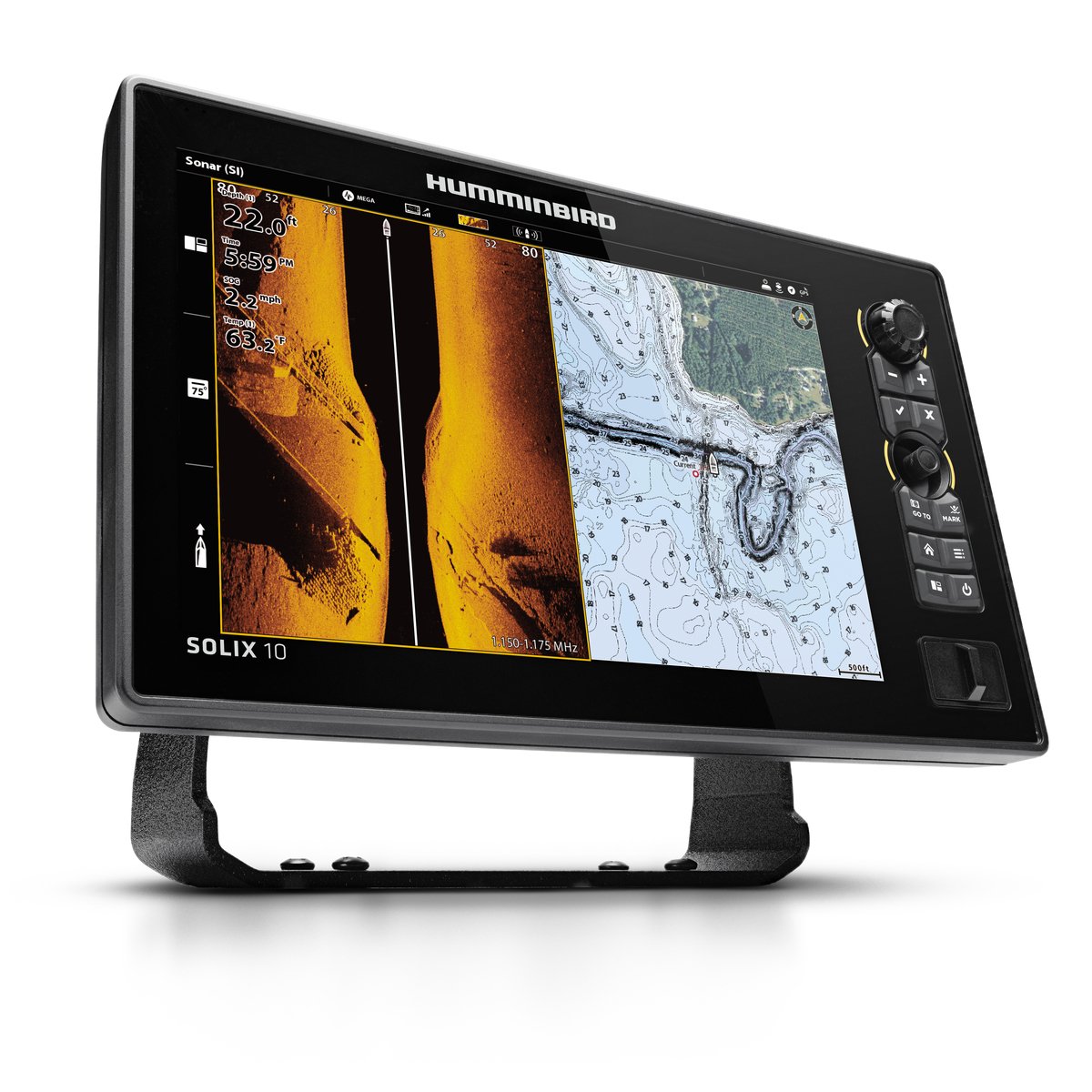

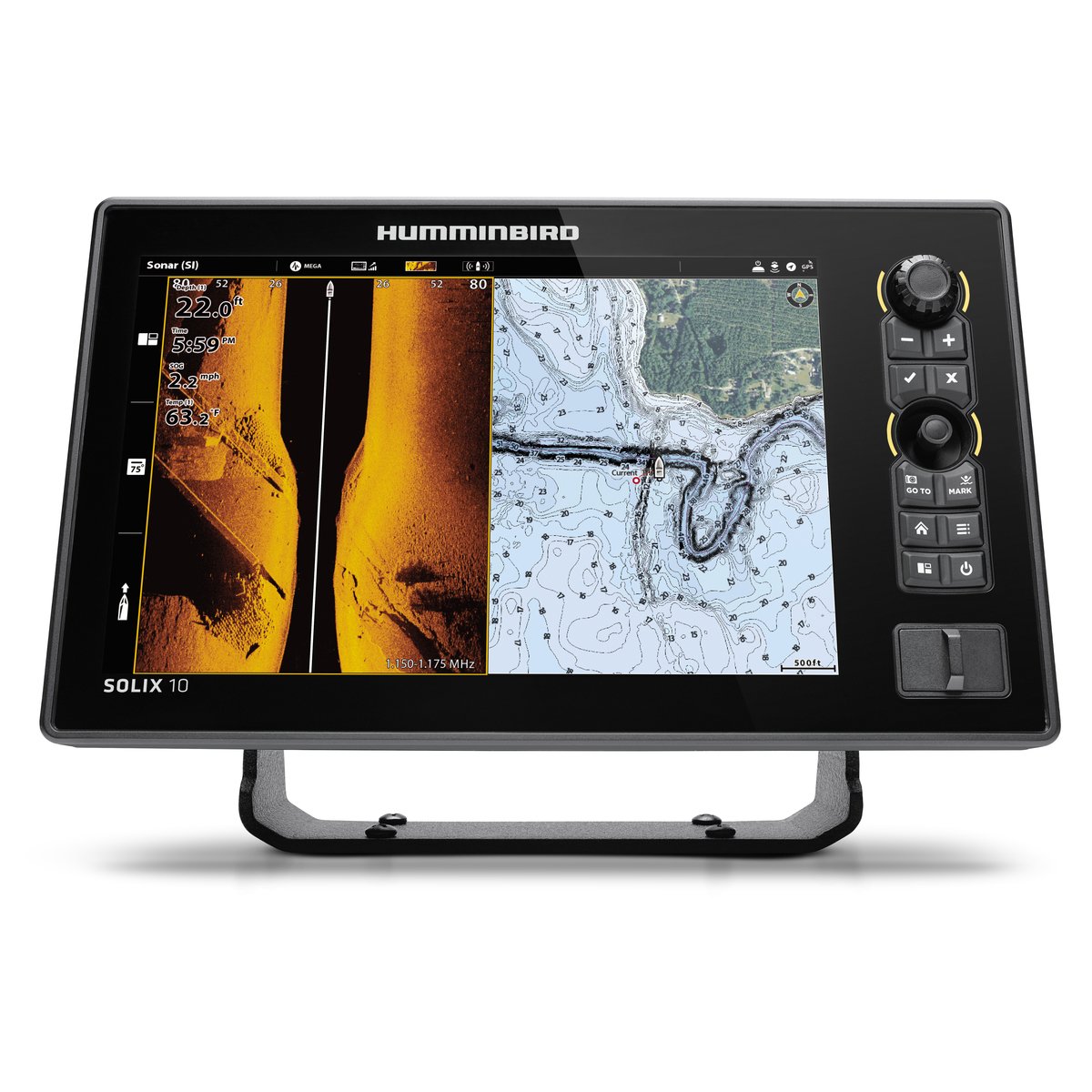

Humminbird Solix 10 CHIRP MSI GPS G2N 411010-1
Regular price
$2,499.99 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Humminbird Solix 10 CHIRP MSI GPS G2N 411010-1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
The SOLIX 10 CHIRP MEGA SI+ G2 fish finder features a large 10.1" Cross Touch Interface display with LED backlight, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar. Includes GPS chartplotting, Humminbird Basemap, Wi-Fi, Bluetooth, Ethernet and NMEA 2000® capabilities, as well as AutoChart Live with depth, vegetation and bottom hardness mapping.
Series |
SOLIX |
Display Size - Diagonal |
10.1" |
Display Pixel Matrix |
1280H x 800V |
Sonar-Standard |
Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+ |
Sonar-Coverage |
20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB |
Sonar-Optional |
50 kHz, 50/Low Airmar CHIRP and SM3000 |
CHIRP - Frequencies Supported |
Full Mode (28-75 kHz), Narrow Mode (75-155 kHz), Optional Deepwater (28-250 kHz), Wide Mode (130-250 kHz) |
Sonar-Frequencies Supported |
50/83/200/455/800 kHz & 1.2 MHz |
Depth-Sonar |
1,200 ft (standard transducer), 5,000 ft (optional Airmar CHIRP SM3000) |
CHIRP - Imaging-Frequencies Supported |
455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz) |
Depth-Down Imaging |
125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz) |
Range-Side Imaging (Side-To-Side) |
250 ft (800 kHz), 400 ft (MEGA), 800 ft (455 kHz) |
Interface |
Touch Screen |
Features |
Bluetooth, Built In GPS, Built In Mapping, CHIRP Digital Sonar, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Side Imaging, Touch Screen, Wi-Fi |
Memory Card Slot |
Dual Micro SD |
Compatible With |
360 Imaging, AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon, NMEA 2000, Radar |
Power Draw |
2.4 Amps |
Power Input |
10.8-20 VDC |
Power Output Peak-to-Peak |
8000 Watts |
Power Output RMS |
1000 Watts |
Screen Snap Shot |
Included |
Sonar Recording |
Included |

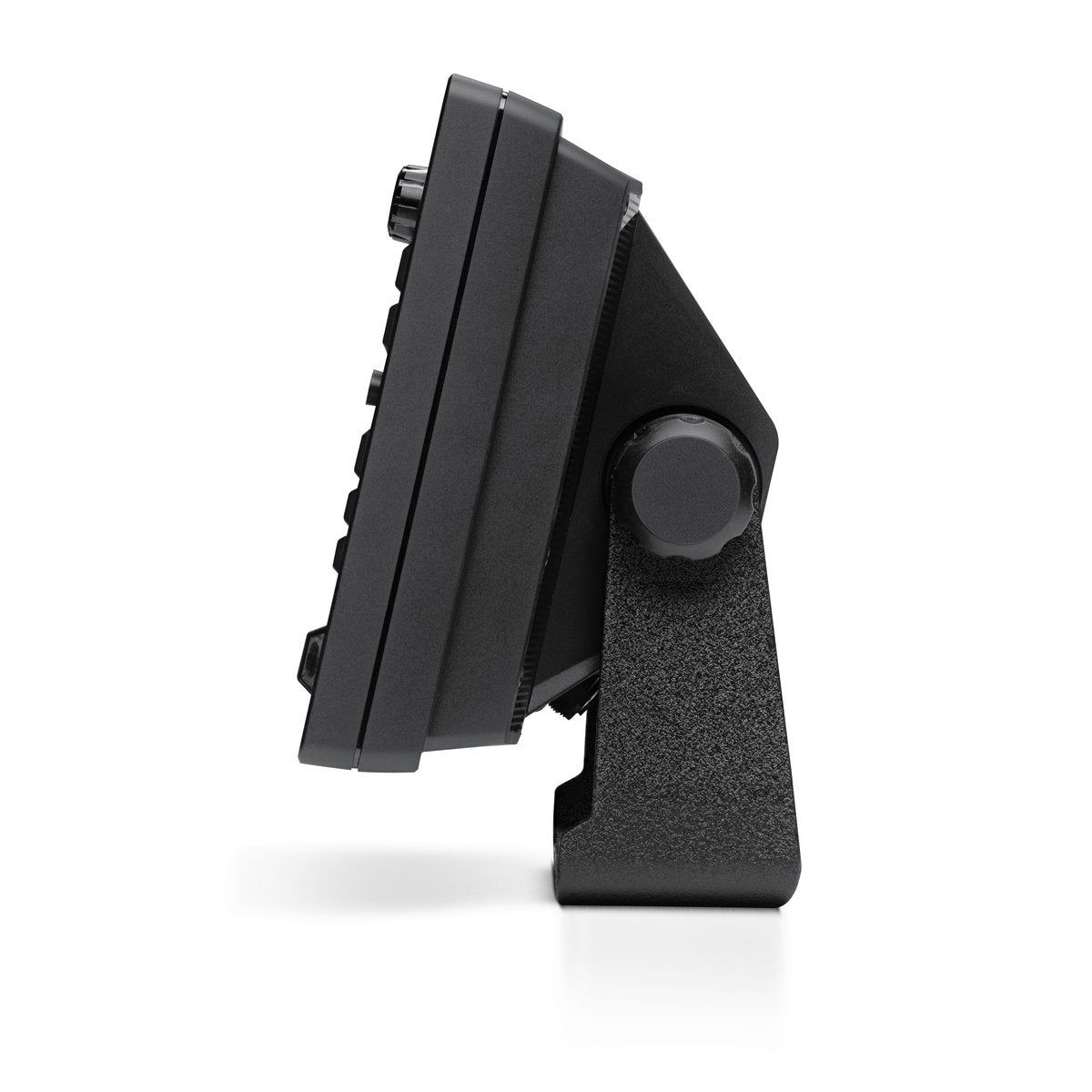

Mount-Standard |
Gimbal |
Mount-Standard Size |
11.81" W x 7.89" H x 4.45" D |
Mount-Optional |
In-Dash Mounting Kit |
Mount-Optional Size |
11.81" W x 7.06" H x 1.52" D |
Transducer Included |
XM 14 HW MSI T |
Transducer Mount Location |
Transom |
GPS Chartplotting |
Included |
GPS Receiver |
Internal |
GPS Trackplotting |
Included |
Waypoints, Routes, Tracks/Points |
10,000, 50, 50/20,000 |
360 Imaging Compatibility |
Yes |
Humminbird Basemap |
Included |
LakeMaster Compatibility |
Yes |
Minn Kota i-Pilot Link Compatibility |
Yes |
Minn Kota Talon Shallow Water Anchor Compatibility |
Yes |
Navionics Gold/HotMaps Compatibility |
Yes |
Navionics Platinum + Compatibility |
Yes |
Platinum Compatibility |
Yes |
Radar Compatibility |
Yes |
5-Port Ethernet Switch Compatibility |
Yes |
AIS Compatibility |
Optional |
Heading Sensor GPS Compatibility |
Yes |
NMEA2000 |
Included |
Target Separation |
2.5" |
Upgradable Software |
Yes |
View Preset Keys |
No |
X-Press Menu System |
No |
Custom Digital Readout |
Yes |
Custom View Selections |
Yes |
Display Colors Grayscale |
16-Bit |
Display Size |
8" - 10" |
Display Type |
Color TFT |
Speed |
Included |
Temperature |
Built In |
Temperature Alarm |
Yes |
Temperature Graph |
Yes |
UPC |
0082324053542 |
