Marinco_Guest_AFI_Nicro_BEP | SKU:
969-701PM

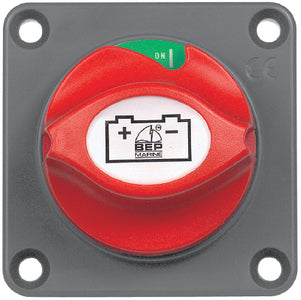

Marinco_Guest_AFI_Nicro_BEP 701-PM Panel Mount Battery Switch
Regular price
$35.79 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Marinco_Guest_AFI_Nicro_BEP 701-PM Panel Mount Battery Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Marinco_Guest_AFI_Nicro_BEP 701-PM Panel Mount Battery Switch
Regular price
$35.79 USD
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
2 POSITION - ON/OFF
The 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45° position. The control knob also features an interchangeable labeling system allowing a full range of applications. A removable rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Can be either surface or recess mounted by cutting a 2-1/16" hole. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.
The 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45° position. The control knob also features an interchangeable labeling system allowing a full range of applications. A removable rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Can be either surface or recess mounted by cutting a 2-1/16" hole. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.
- Compact, lightweight
- Removable key
- Countersunk recesses for surface mount application
- Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
- Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
- Standard interchange label system
- Molded in high temperature, fiber reinforced plastics
Mount
Panel Mount
Amps
275 (Continuous)
Volts
6-48
UPC
870216005355
MPN
701-PM
LNS Part #
69-701PM
KMS Part #
AFI 701PM
DMP Part #
05-7966
