Marinco_Guest_AFI_Nicro_BEP | SKU:
69-RY504230
Marinco_Guest_AFI_Nicro_BEP RY504-2-30 Reverse Y Molded Adapter
Regular price
$627.79 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Marinco_Guest_AFI_Nicro_BEP RY504-2-30 Reverse Y Molded Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Marinco_Guest_AFI_Nicro_BEP RY504-2-30 Reverse Y Molded Adapter
Regular price
$627.79 USD
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description

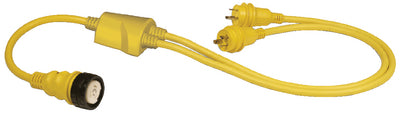

The special Reverse "Y" Adapter features special power isolation circuitry so if one plug is connected to a receptacle, the second plug is isolated so no power flows through it. It provides 50A 125/250V power from 2 30A 125V receptacles. Female end has a sealing collar system.
Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.
Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.

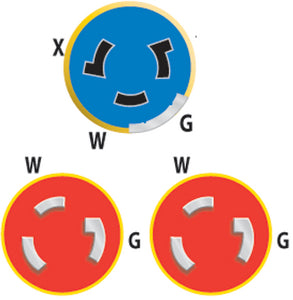

Female (Boat)
50A 125/250V
Male (Dock)
(2) 30A 125V
UPC
93344501357
MPN
RY504-2-30
LNS Part #
69-RY504230
KMS Part #
MAR RY504230
DMP Part #
24-9419
