Morse BARRACUDA 7/8 X 1 3/8 X 3 1/2 br.bearing
Regular price
$99.49 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Morse BARRACUDA 7/8 X 1 3/8 X 3 1/2 br.bearing is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description

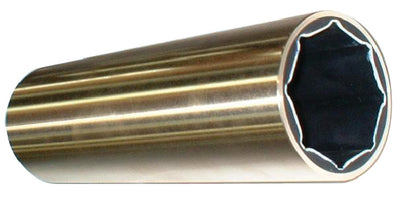

Pollution-Free Naval Brass Marine Bearings
Brass sleeve with rubber oil resistant shaft. The clean bearing that cushions the shaft, installs in minutes and lasts for years
Morse Bearings are engineered to meet the toughest service requirements in corrosive and abrasive marine or industrial applications. The fluted rubber bearings surface will outlast hard surface bearings by more than 10 times. All materials meet U.S. Navy specs MIL-B-17901A CLII.
Bearing Selection: Normal design practice is to select a bearing with a length equal to 4 times the shaft diameter.
It may be acceptable to deviate from this rule when application load requirements permit the use of shorter bearing lengths. * Slimline Bearing.
Bearing area is: Bearing I.D. (shaft diameter) multiply x bearing length. Loading capability is determined by: Multiplying that bearing area x 35 psi.
Example: (RAY)-
3" shaft dia.
x 12" length
36 sq." bearing area
x 35 psi
1,260 lbs. Is bearing load capacity
Brass sleeve with rubber oil resistant shaft. The clean bearing that cushions the shaft, installs in minutes and lasts for years
Morse Bearings are engineered to meet the toughest service requirements in corrosive and abrasive marine or industrial applications. The fluted rubber bearings surface will outlast hard surface bearings by more than 10 times. All materials meet U.S. Navy specs MIL-B-17901A CLII.
Bearing Selection: Normal design practice is to select a bearing with a length equal to 4 times the shaft diameter.
It may be acceptable to deviate from this rule when application load requirements permit the use of shorter bearing lengths. * Slimline Bearing.
Bearing area is: Bearing I.D. (shaft diameter) multiply x bearing length. Loading capability is determined by: Multiplying that bearing area x 35 psi.
Example: (RAY)-
3" shaft dia.
x 12" length
36 sq." bearing area
x 35 psi
1,260 lbs. Is bearing load capacity
Shaft
7/8" dia.
OD
1-3/8"
Length
3-1/2"
Johnson Name
APEX
BF Goodrich Name
Katy
MPN
BARRACUDA
LNS Part #
87-BARRACUDA
KMS Part #
CUT BARRACUDA
DMP Part #
22-5004
