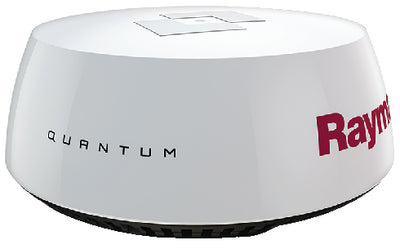

Raymarine E70344 Quantum Q24w Wireless Radome

Quantum Radar is the world's first compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum's energy effcient and lightweight design provides safe radiated emissions and reduced power consumption.

• Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)


• Networking: Wi-Fi or wired Ethernet (RayNet)


• Antenna Type: Patch Array


• Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W


• Max. Range Scale: from 1/16 to 24 nautical miles


• Transmit Frequency: 9354 to 9446 MHz


• Peak Power Output: 20W


• Duplexer: Circulator


• Pulse Widths (3 dB): 40 ns to 14.7 ?s


• CHIRP Lengths: 400 ns to 20 ?s


• CHIRP Bandwidth: Up to 32 MHz


• IF Bandwidth: 26 MHz


• Noise: Less than 4 dB


• Beamwidth (nominal): 4.9° horizontal and 20° vertical


• Polarisation: Horizontal


• Waterproofing: IPX6
