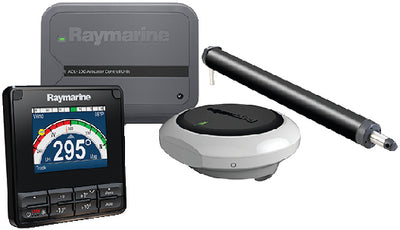

Raymarine T70153 Ev100 Tiller Autopilot System

Pack Contains:

• EV1 Sensor Core

  Designed for Evolution mechanical and hydraulic autopilot systems.
  SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

• Actuator Control Unit-100

  Specifically designed to complement RaymarineÆs unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor. Fully sealed so may be mounted above decks on boats where space is limited.

• p70 / p70s Autopilot Control Head (Sail)

  The p70 / p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The p70 / p70s control head features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

• Tiller Drive

  The Raymarine EV-100 Tiller Pilots are perfect for large tiller steered yachts up to 6,000kg (13,200 lbs) displacement. The tiller drive unit is compact and unobtrusive and used by some of the world's top single-handed sailors!

• Evolution Cabling Kit - Contains:

  ng Power Cable (0.4m)
  1 x SeaTalkng Backbone Cable (5m)
  1 x SeaTalkng Spur Cable (0.4m)
  1 x SeaTalkng 5-way Connector Block
  2 x SeaTalkng T-piece Connector
  2 x SeaTalkng Terminator
