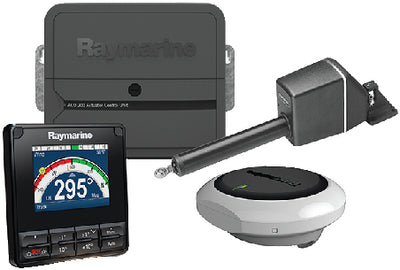

Raymarine T70158 Ev200 Linear Autopilot Sail

Pack Contains:

• EV1 Sensor Core

  Designed for Evolution mechanical and hydraulic autopilot systems.
  SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

• Actuator Control Unit-200

  The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

• p70 / p70s Autopilot Control Head (Sail)

  The p70 / p70s autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The p70 / p70s control head features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

• Type 1 Mechanical Linear (12V) - Features

  powerful thrust, fast hardover times and quiet operation
  low backdrive force, to minimize the driveÆs effect on the boatÆs steering when the autopilot is in standby
  a powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox
  high performance for minimum current consumption

• Evolution Cabling Kit - Contains:

  ng Power Cable (0.4m)
  1 x SeaTalkng Backbone Cable (5m)
  1 x SeaTalkng Spur Cable (0.4m)
  1 x SeaTalkng 5-way Connector Block
  2 x SeaTalkng T-piece Connector
  2 x SeaTalkng Terminator
