Raymarine | SKU:
152-T70168

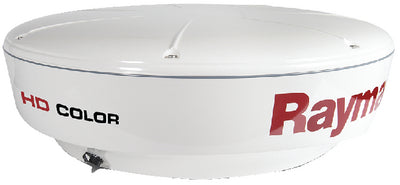

Raymarine T70168 Rd418hd 4kw Color Hd Radome
Regular price
$2,394.99 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Raymarine T70168 Rd418hd 4kw Color Hd Radome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Raymarine T70168 Rd418hd 4kw Color Hd Radome
Regular price
$2,394.99 USD
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Compatible with the following Multifunction Displays: aSeries; c Series; e Series; NEW eS Series; gS Series; C Series Widescreen; E Series Widescreen; G Series.
- Networking: SeaTalkHS
- Peak Power Output (kW): 4.0 kW (nominal)
- Antenna Type: Patch Array
- Beam Width (Nominal): 4.9° horizontal, 25° vertical
- Polarization: Horizontal
-
Rotation Rate: Range less than 3 miles û 48 RPM (radar switches to 48 RPM automatically, unless 24 RPM is selected)
Range greater than 3 miles - 24 RPM (nominal) - Power Consumption: 60 W (25 W Standby)
- Maximum Range Scale: 48 nm
- IF Frequency: 70 MHz (nominal)
- Transmitting Frequency: 9405 +/û 25 MHz
- Transmitter: Solid-state modulator driving Magnetron
- Standby Mode: Magnetron heater and control left on, all other services off
- Duplexer: Circulator
- CE Approval: Conforms to 1999/5/EC
- FCC Approval: Conforms to 47CFR Part 2 and Part 80
Description
4kW 18" w/10m Raynet Cable
Size
20.5" x 9.7"
UPC
723193774496
MPN
T70168
LNS Part #
152-T70168
KMS Part #
RAY T70168
DMP Part #
38-4820
